What is the difference between an O-ring and an X-ring?

An O-ring has a circular cross-section and seals by deformation under compression. An X-ring (quad-ring) has a four-lobed cross-section that eliminates spiral failure in reciprocating applications, reduces friction, and provides two sealing contact points per interface. X-rings are preferred over O-rings in dynamic applications where the seal undergoes axial or rotary movement.

What O-ring material is best for hydraulic systems?

NBR (Nitrile Butadiene Rubber) is the standard material for general hydraulic systems using mineral oil or water-glycol fluids, rated to 120 °C. HNBR is preferred in high-temperature or sour-gas hydraulic applications up to 150 °C. FKM is used where the hydraulic fluid is a fire-resistant phosphate ester or where temperatures exceed 150 °C.

What is the difference between FKM and FFKM O-rings?

FKM (Fluorocarbon) provides broad chemical resistance and operates up to 200 °C. FFKM (Perfluoroelastomer) provides near-universal chemical resistance and operates up to 300 °C. FFKM is specified for aggressive chemical process and critical oilfield applications where FKM is not chemically compatible.

Can Santoo manufacture O-rings to custom sizes?

Yes. Santoo manufactures O-rings, X-rings, and V-rings to custom dimensions from in-house elastomer compounds at its KEZAD, Abu Dhabi facility. Custom profiles are cut or moulded to drawing with typical lead times of 24–72 hours for GCC customers.

What O-ring materials are approved for potable water applications?

For potable water applications, EPDM and WRAS-listed elastomers are the standard specification. NSF-approved compounds (NSF/ANSI 61) are used where direct contact with drinking water is required. Santoo supplies NSF-approved and WRAS-listed O-rings from its in-house compound range.

What is an API 6A O-ring compound?

API 6A is the American Petroleum Institute standard for wellhead and Christmas tree equipment. API 6A O-ring compounds meet specific material requirements for oilfield service including resistance to H2S, CO2, and high-pressure hydrocarbon environments. Santoo manufactures and stocks API 6A certified elastomer compounds for O-rings and custom sealing applications.

Sealing Solutions

O-Rings, X-Rings
& V-Rings.

The O-ring is the most widely deployed sealing element in hydraulic, pneumatic, and process systems — a single toroidal profile that prevents leakage across static and dynamic interfaces at pressures from vacuum to over 400 bar.

API 6A compounds NSF-approved materials WRAS-listed elastomers

Request samples or quote

O-rings in multiple sizes — NBR, FKM, EPDM and FFKM compounds manufactured by Santoo

Product overview

What Santoo manufactures.

Santoo manufactures O-rings, X-rings (quad-rings), and V-rings from in-house elastomer compounds developed at our KEZAD facility. Standard sizes are stocked across all listed materials. Non-standard profiles and bespoke dimensions are cut or moulded to drawing with typical lead times of 24–72 hours for GCC customers.

X-rings carry a four-lipped sealing profile that prevents spiral failure in reciprocating applications and delivers lower friction than an equivalent O-ring. V-rings provide axial sealing on rotating shafts and are self-compensating for wear.

All API 6A and NSF compounds are batch-traceable. Material certificates and test reports are issued on request.

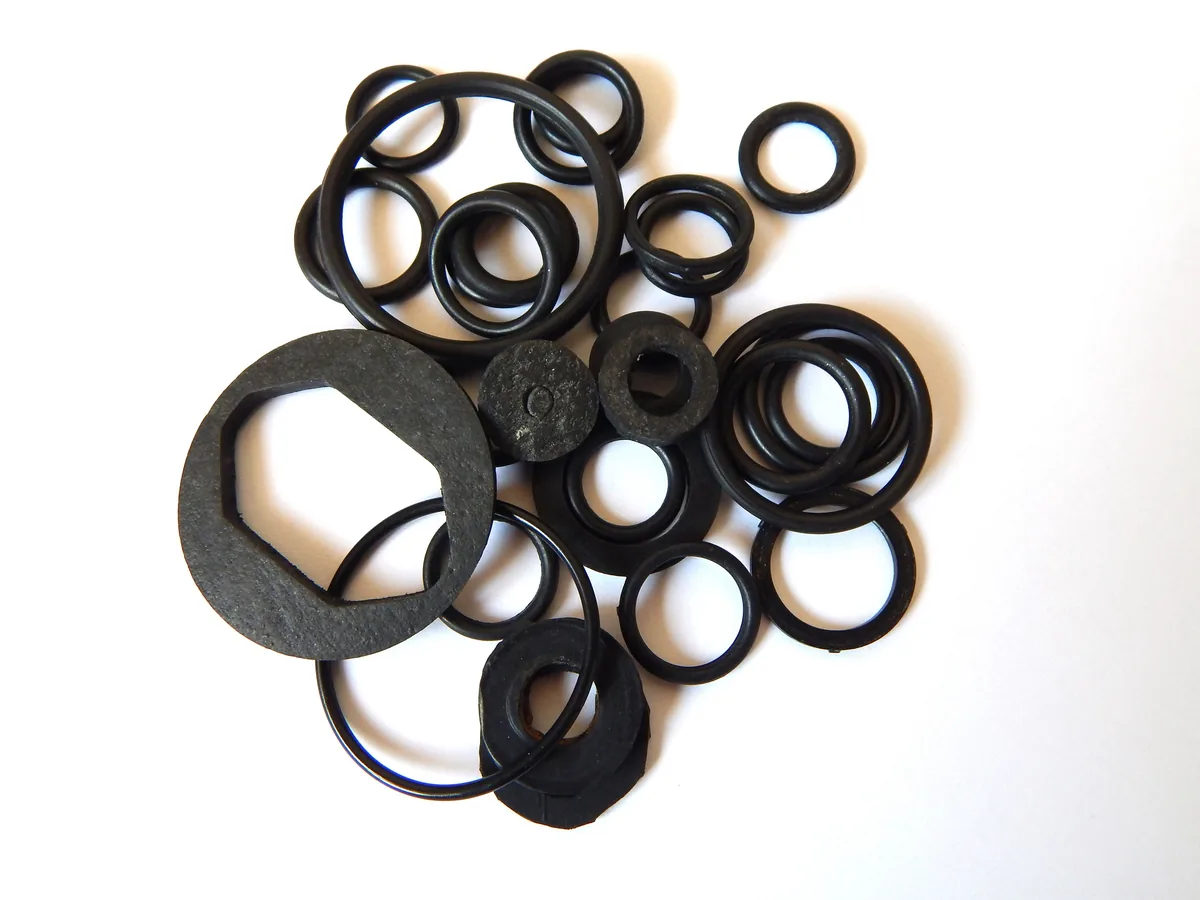

Assorted rubber seals, O-rings and gaskets — standard and custom profiles by Santoo

Specification.

Profiles	O-Ring, X-Ring (quad-ring), V-Ring
Materials	NBR, HNBR, FKM, FFKM, EPDM, Silicone, Neoprene, FVMQ, FEPM, AFLAS, SBR, XNBR
Diameter range	4 mm – 600 mm
Hardness range	40 – 90 Shore A
Custom sizes	To drawing — 24–72 hr lead time
API 6A compounds	Available — batch-traceable
NSF compounds	Available — potable water rated
WRAS elastomers	Available — drinking water systems
Assorted kit boxes	Available — O-ring / X-ring mixed sets

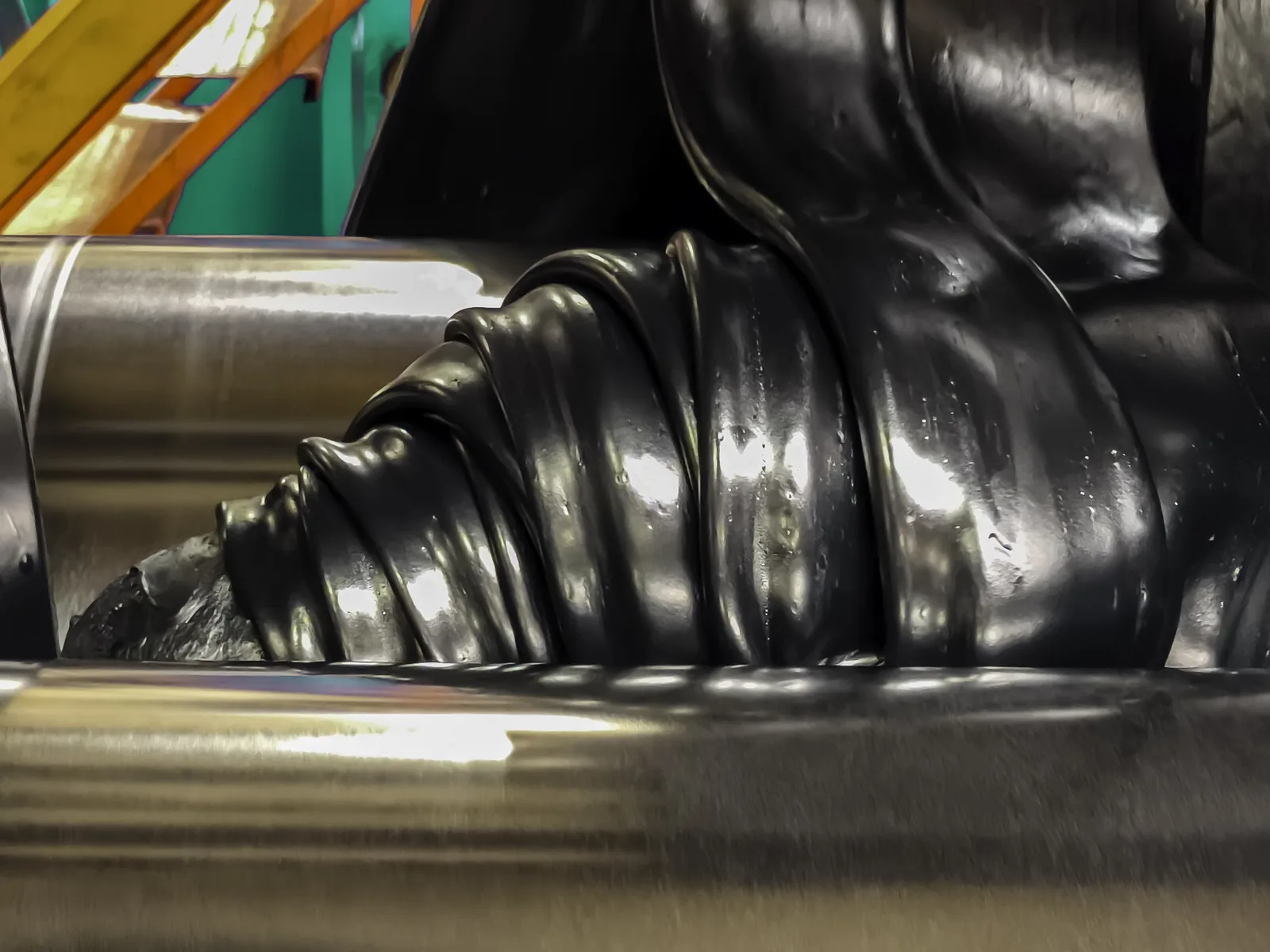

Rubber elastomer compound being processed on a mill — in-house compound development at Santoo KEZAD

In-house elastomer compound development — KEZAD, Abu Dhabi

Materials

Compound selection guide.

Material choice is the primary determinant of seal life. Each compound below is stocked and manufactured at our KEZAD facility.

Temp. range: −40 °C to +120 °C
Key property: Oil, fuel, and hydraulic fluid resistance
Primary application: General hydraulic and pneumatic systems

Temp. range: −40 °C to +150 °C
Key property: Enhanced heat and ozone resistance over NBR
Primary application: Oilfield, sour gas, high-temperature hydraulics

Temp. range: −20 °C to +200 °C
Key property: Broad chemical resistance, low permeability
Primary application: Chemical process, refinery, high-temp service

Temp. range: −10 °C to +300 °C
Key property: Near-universal chemical resistance
Primary application: Aggressive chemical and critical process

Temp. range: −50 °C to +150 °C
Key property: Steam, ozone, and water resistance
Primary application: Water and desalination, steam systems

Temp. range: −5 °C to +200 °C
Key property: Resistance to steam, amines, and bases
Primary application: Oilfield and geothermal applications

Temp. range: −40 °C to +120 °C
Key property: Weather, ozone, and refrigerant resistance
Primary application: Marine, HVAC, and outdoor equipment

Temp. range: −65 °C to +175 °C
Key property: Fuel and oil resistance at extreme temperatures
Primary application: Aerospace and extreme-temperature fuel systems

Additional compounds: AFLAS (TFE/P), Carboxylated NBR (XNBR), Silicone (VMQ), Natural Rubber, SBR. Full compound reference →

Applications

Where these seals run.

O-rings, X-rings, and V-rings from Santoo are in service across GCC (Gulf Cooperation Council) heavy industry — in wellhead control systems, desalination membranes, hydraulic cylinders on port cranes, and process flanges in cement and chemical plants.

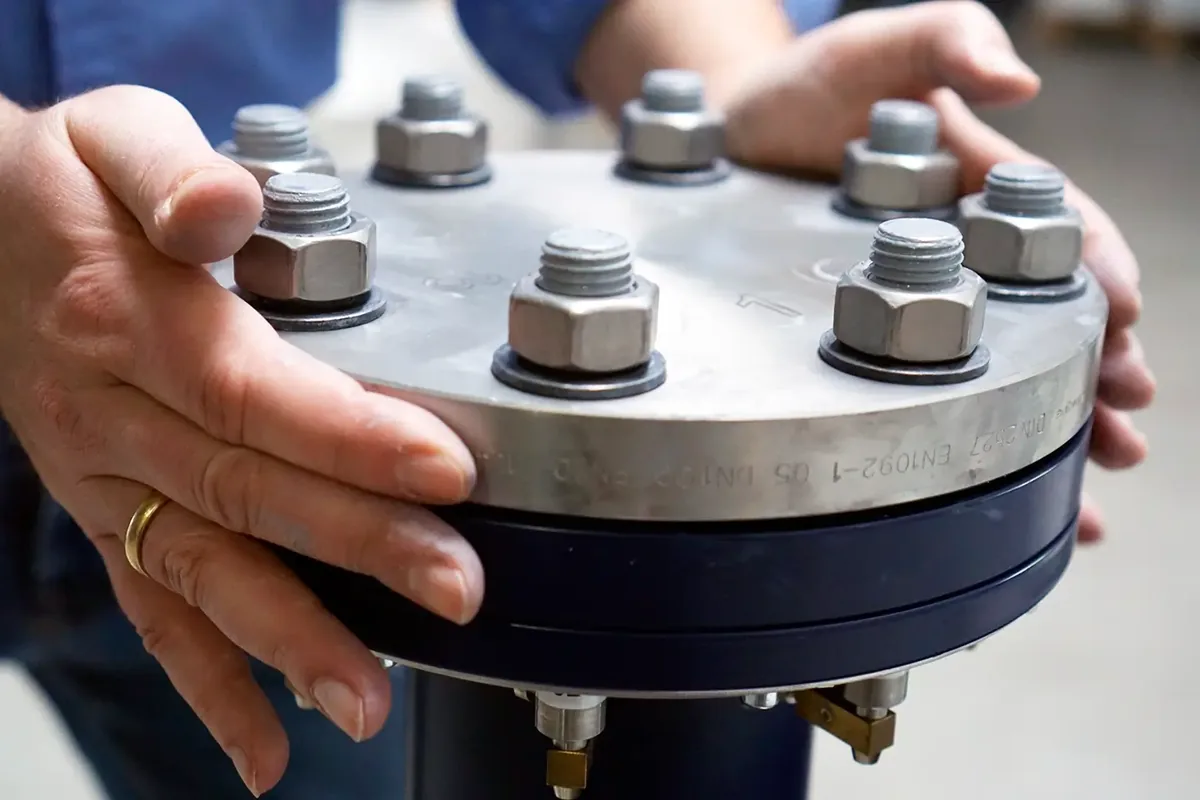

Flanged pipe joint assembly with bonded seals — O-rings in service across process and hydraulic systems

Related products.

Other sealing solutions manufactured at the same facility.

Need a size outside this range, or a custom compound?

Our engineering team will specify the correct profile and material for your operating conditions. Sample requests and quote enquiries are answered within one business day.
